Face Protection - Air Fed Helmets

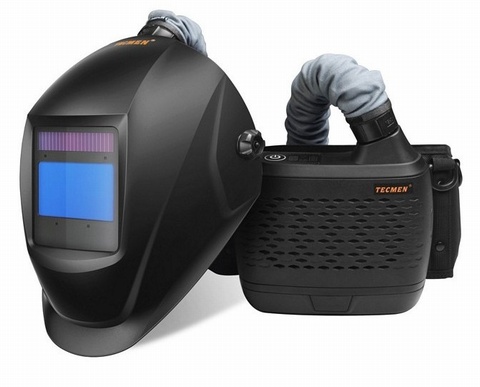

Tecmen V1 PAPR Air Fed Welding Helmet

• Optical class 1/1/1/1
• Viewing area 97x62mm
• 4 arc sensors
• Variable dark shade settings 5 - to 13

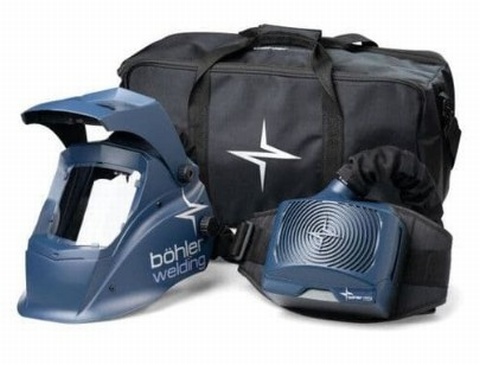

Bohler Guardian 50FM PAPR Air

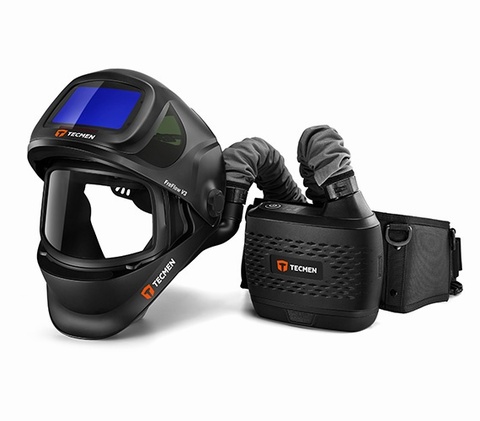

Tecmen V3 PAPR Air Fed Helmet

• Optical Class: 1/1/1/1
• Viewing Area: 107 x 75mm
• Cartridge: 156 x 123 x 33mm
• Grinding Lens View: 20 x 12cm
• Modes: Welding/Cutting/Grinding
• Arc Sensor: 4
• Light State: DIN 3.5
• Dark State: DIN 5-8 / 9-13
• Shade Control: Internal, Digital Display
• Power: Manually On/Off, Auto Off
• Sensitivity Control: Low-High, Digital Display
• UV/IR Protection: Up to DIN16
• Power Supply: Solar cell, 2 x CR2450 lithium battery
• Switching Time: 1/25,000 s light to dark
• Delay (Dark to Light): 0.1 ~ 1.0s by dial control
• Low Amperage TIG rated (AC – DC): ≥ 2 amps
• Applications: MMA, TIG, TIG Pulse, MIG Pulse, Plasma Cutting/Welding, Air Arc Gouging
