BOHLER CORE 210 DC TIG
BOHLER CORE 210 DC TIG BOHLER CORE 210 DC TIG BOHLER CORE 210 DC TIGBOHLER CORE 210 DC TIGBOHLER CORE 210 DC TIG

BOHLER CORE 210 DC TIG

From £873.00 excl. vat
(£1,047.60 incl. vat)

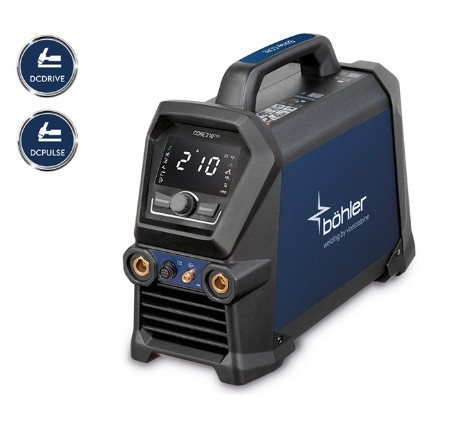

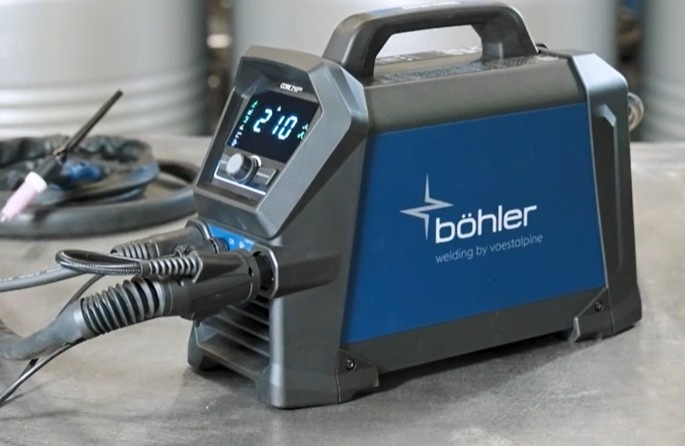

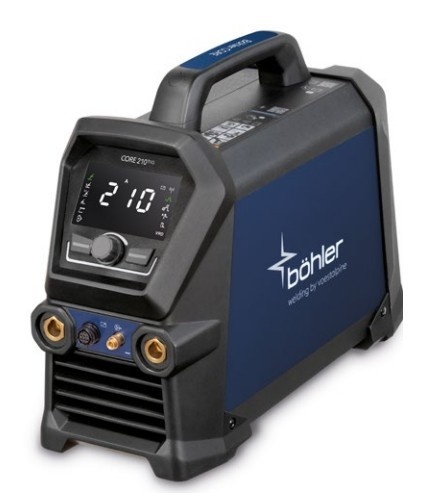

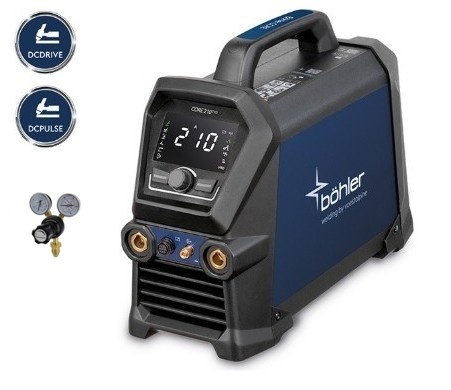

CORE 210TIG is a single-phase (230V & 110V Auto sensing) power source for TIG DC HF welding, TIG Pulse, TIG Spot welding, and MMA welding. Due to its high-grade, hybrid, composite and galvanized steel construction, CORE power sources are portable, durable, and resilient. Advanced, customizable, easy-to-read controls make setting parameters intuitive, while smart monitoring features keep welders informed. Due to the multitude of functions and technical solutions, this product is designed for high-quality and precise welding applications such as in the case of stainless steel.

Choose an option below:

Quantity

  • Air flow ducting to reduce dust accumulation
  • Shockproof, self-extinguishing, corrosion-resistant plastic case
  • Built-in adjustable arc control features: hot start, arc force, antisticking
  • Reduced dimensions and compact construction
  • Adjustable arc dynamics
  • High energy efficiency with built-in PFC (Power Factor Controller)
  • Simple and precise parameter setting
  • User-defined welding program storage (3 custom memory locations)
  • Inverter technology power source for improved arc dynamics and full control of all welding phases
  • Extremely robust, reliable and easy-to-use equipment
  • Digital display of welding parameters
  • Auto-storage of last job settings at switch-off
  • 2/4 step operating mode
  • Bilevel operating mode
  • Spot / timed TIG welding mode
  • Pulsed TIG welding mode
  • Excellent performance even with long power supply extension cables
  • 1" color backlit user panel
  • Suitable for heavy-duty and environmental conditions
  • Remote control (RC) compatible
  • 35/50 mm² power socket
  • Totally programmable/customizable user interface

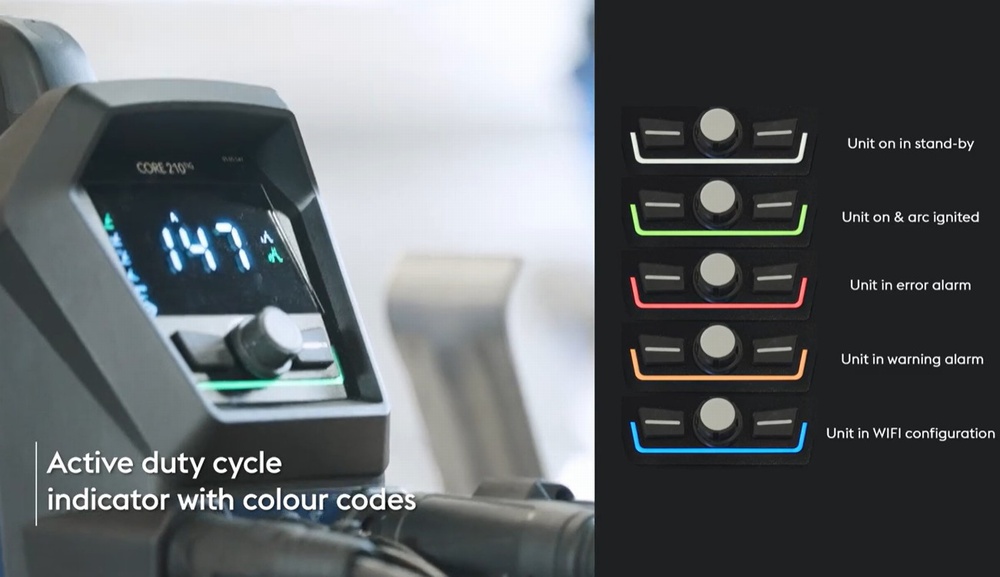

  • Predictive maintenance indicator

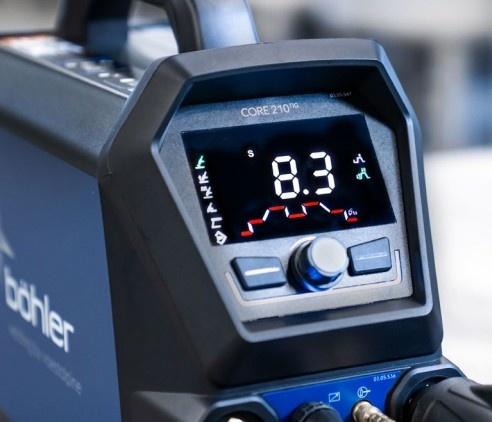

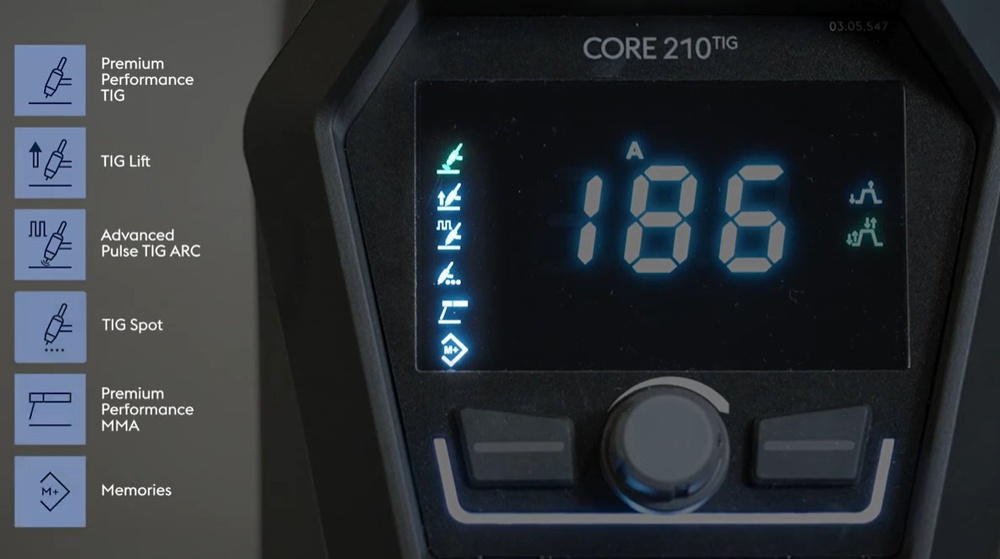

The CORE 210TIG is a single-phase power source engineered for high-precision TIG DC HF welding, TIG Pulse, TIG Spot welding, and MMA welding applications. Designed to deliver premium TIG performance, it features TIG DC HF technology with perfect arc ignition, providing exceptionally stable and smooth arc characteristics for superior welding results. Its advanced Pulsed TIG Arc Control ensures excellent arc stability, making it ideal for thin-gauge materials as well as positional and out-of-position welding applications, while the TIG Spot Welding function allows precise control over heat input for greater accuracy and reduced distortion. The expansive high-contrast display with integrated TIG sequence diagram enhances user experience and visibility in both indoor and outdoor environments, enabling operators to individually adjust parameters such as pre-flow, initial current, upslope, downslope, and post-flow for complete process control. Built-in welding parameter storage allows users to save and instantly recall preferred settings for consistent, repeatable weld quality. With Auto Power Line Adaptation (115/230V), the CORE automatically adjusts to grid or generator power, ensuring maximum flexibility across different job sites. Its ergonomic design, sturdy handle, and shoulder strap make the machine easy to transport and ready to weld anywhere, while the advanced Cool-Air management system with wind tunnel technology optimizes cooling performance and minimizes service, maintenance time, and operating costs. The CORE 210TIG also supports both wired and wireless remote welding current control devices, allowing operators to conveniently adjust welding parameters directly from the torch or remote control for improved efficiency and precision

Dimensions 429 x 172 x 316 mm
Weight 10.3 kg
IP Protection Rate IP23S
Insulation Class H
Power Supply Cable 3 x 2.5 mm² - 3 m
Power Plug Type 16 A 250 V Type F
Power Supply (50/60 Hz) 1 x 230 V (± 15 %) 1 x 115 V (± 15 %)
Maximum Input Power 230V 4.83 kVA / 110V 2.70 kVA
Maximum Input Current 230V 21.0A / 110V 23.5A
Efficiency 230V 81.0% / 110V 82.0%
Power Factor (P.F.) 0.99
Duty Factor - 40 °C
230V
25 % – 210 A
60 % – 135 A
100 % – 105 A
110V
25 % – 140 A
60 % – 90 A
100 % – 70 A
No-load Voltage 76 Vdc 76 Vdc
Welding Current 230V 5-210A / 110V 5-140 A
