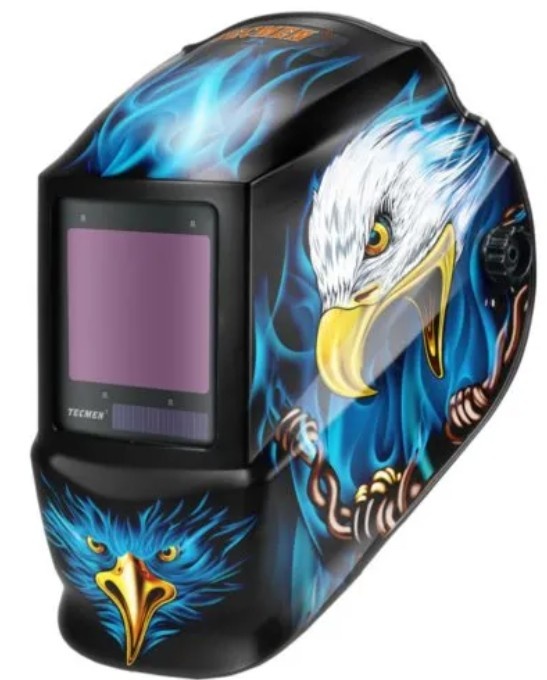

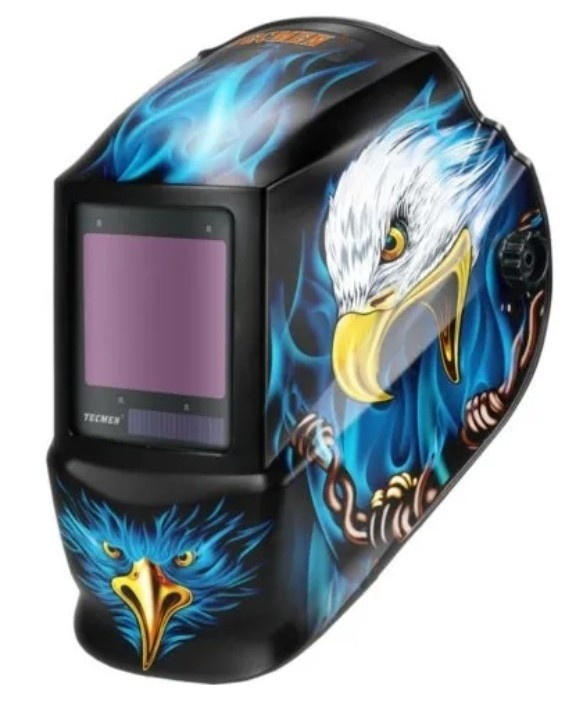

Tecmen Eagle Auto Darkening Helmet
Tecmen Eagle Auto Darkening Helmet Tecmen Eagle Auto Darkening Helmet

Tecmen Eagle Auto Darkening Helmet

From £163.80 excl. vat RRP £182.00 - you save £18.20
(£196.56 incl. vat)

Choose an option below:

Quantity

  • Large viewing area 95x85mm
  • 4 arc sensors
  • Variable dark shades from 6 to 13
  • Grinding mode
  • Low amp TIG rated

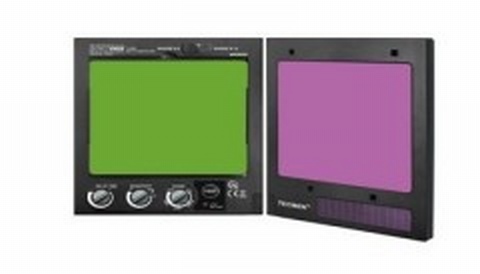

The Tecmen Eagle (TM5 shell & ADF820S filter) auto darkening helmet is a high end unit with the highest optical class 1/1/1/1. A large viewing are of 95 x 85mm with four arc sensors. Variable dark state shades of 5-8 & 9-13 and only weighing 490g.

With the eagle graphics and large viewing area this is a popular helmet locally.

Optical Class 1 / 2 / 1 / 1
Viewing Area 95 x 85mm (3.74” x 3.35”)
Cartridge Size 133 x 114 x 9mm (5.24” x 4.50” x 0.35”)
Arc Sensor 4
Light State DIN 3.5
Dark State Variable Shade 6-8 / 9- 13
Shade Control Internal, Variable Shade
Power On / Off Fully Automatic
Sensitivity Control Low - High, By Infinitely Dial Knob
UR/ IR Protection Up to Shade DIN16 At all times
Power Supply Solar Cell. CR2450 lithium battery Change
required.
Switching Time 1/25,000 s. From Light to Dark
Dark to Light 0.1 ~ 1.0s By Infinitely Dial Knob
Low Amp TIG Rated & 8805; 2 A / DC; &
Grinding YES
Operating Temp -10°C ~ +55°C (14°F ~ 130°F)
Storing Temp -20°C ~ +70°C (-4°F ~ 158°F)
Total weight, incl Helmet 490g
