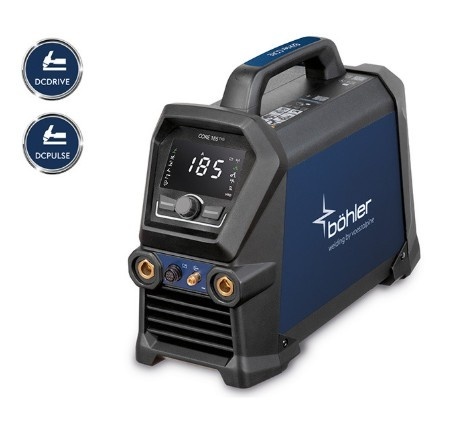

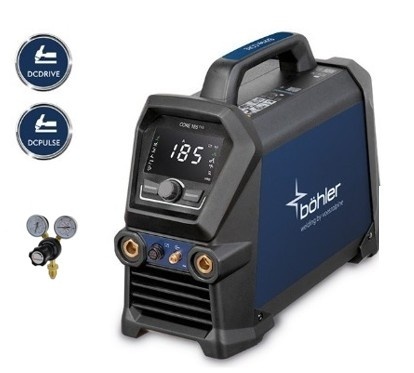

Bohler CORE 185 DC TIG

Bohler CORE 185 DC TIG

From £748.75 excl. vat RRP £1,011.95 - you save £263.20
(£898.50 incl. vat)

CORE 185TIG is a single-phase (230V & 110V Auto sensing) power source for TIG DC HF welding, TIG Pulse, TIG Spot welding, and MMA welding. Due to its high-grade, hybrid, composite and galvanized steel construction, CORE power sources are portable, durable, and resilient. Advanced, customizable, easy-to-read controls make setting parameters intuitive, while smart monitoring features keep welders informed. Due to the multitude of functions and technical solutions, this product is designed for high-quality and precise welding applications such as in the case of stainless steel

Choose an option below:

Quantity

  • Air flow ducting to reduce dust accumulation
  • Shockproof, self-extinguishing, corrosion-resistant plastic case
  • Built-in adjustable arc control features: hot start, arc force, antisticking
  • Reduced dimensions and compact construction
  • Adjustable arc dynamics
  • High energy efficiency with built-in PFC (Power Factor Controller)
  • Simple and precise parameter setting
  • User-defined welding program storage (3 custom memory locations)
  • Inverter technology power source for improved arc dynamics and full control of all welding phases
  • Extremely robust, reliable and easy-to-use equipment
  • Digital display of welding parameters
  • Auto-storage of last job settings at switch-off
  • 2/4 step operating mode
  • Bilevel operating mode
  • Spot / timed TIG welding mode
  • Pulsed TIG welding mode
  • Excellent performance even with long power supply extension cables
  • 1" color backlit user panel
  • Suitable for heavy-duty and environmental conditions
  • Remote control (RC) compatible
  • 35/50 mm² power socket
  • 16A plug fitted
  • Totally programmable/customizable user interface
  • Predictive maintenance indicator

CORE 185 DC TIG is a single-phase dual voltage power source for highest-precision TIG DC HF welding, TIG Pulse, TIG Spot welding, and MMA welding.
Due to their high-grade, hybrid, composite and galvanized steel construction, CORE power sources are portable, durable, and resilient. CORE is built to last! Advanced customizable easy-to-read controls make setting parameters intuitive, and smart monitoring features keep welders informed. The ergonomic and sturdy handle and shoulder strap make CORE ready
to weld anywhere. Adjustable 2-step-arc start and 4-step arc start provide the welders with different options for ignition sequences and welding operations based on the specific application needs. Cool-air management / wind tunnel, ensures optimal performance and minimizes service and maintenance time and costs.

Dimensions 429 x 172 x 316 mm
Weight 10.3 kg
IP Protection Rate IP23S
Insulation Class H
Power Supply Cable 3 x 2.5 mm² - 3 m
Power Plug Type 16 A 250 V Type F
Power Supply (50/60 Hz) 1 x 230 V (± 15 %) 1 x 115 V (± 15 %)
Maximum Input Power 3.96 kVA 2.70 kVA
Maximum Input Current 17.2 A 23.5 A
Efficiency 82.2 % 82.0 %
Power Factor (P.F.) 0.99 0.99
Duty Cycle @ 40 °C 230V
25 % – 185 A
60 % – 120 A
100 % – 93 A
Duty Cycle 40°C 110V
25 % – 140 A
60 % – 90 A
100 % – 70 A
No-load Voltage 76 Vdc 76 Vdc
Cos& 1060; 0.99 0.99
Welding Current 230V 5-185A 110V 5-140A
